Installing Ruby in a Xen Skywalker

Overview

Mounting

Power Wiring

Connecting

Balance

Transmitter settings

Configuration

Overview

Here are instructions, including videos and high definition closeup pictures, for installing Ruby in the Xen Skywalker. For installation in other aircraft, refer to Supported Aircraft to see if specific instructions may exist. Refer to the General Installation Instructions for planes not on that list, and for more detail about some aspects of installation shown here.







Mounting

Overview

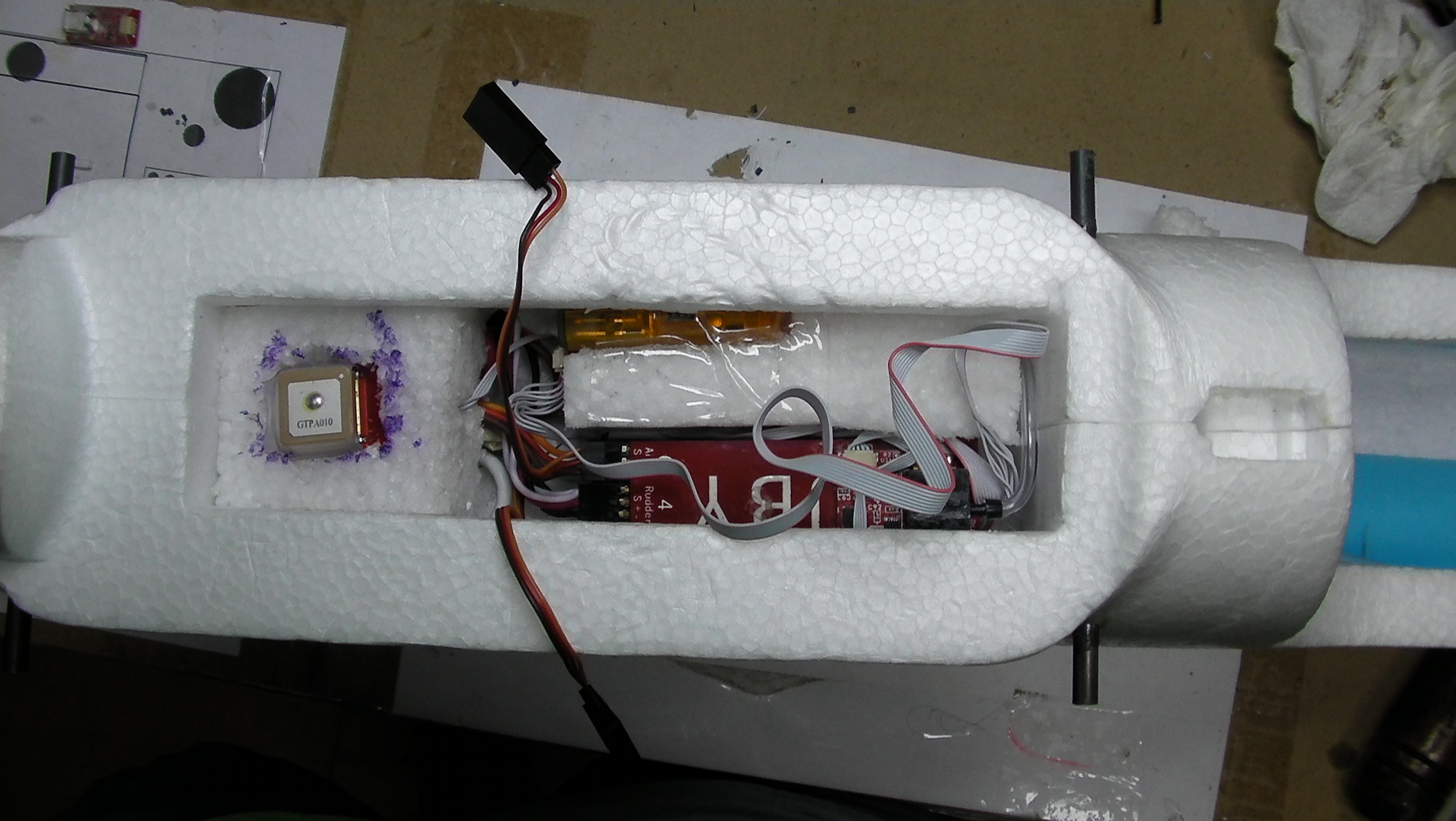

The Ruby installation in the Skywalker is particularly tidy. The Ruby controller and GPS can be put into a single bundle up in the "attic" space above the main payload area.

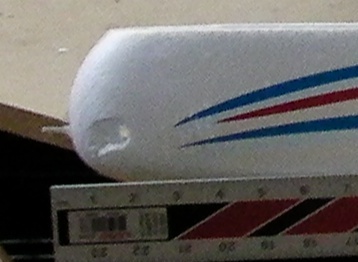

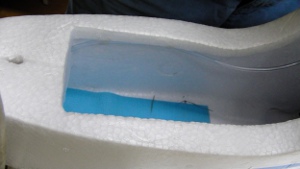

Even though it is possible to locate the airspeed/magentometer and pitot tubing inside the fuselage, you should put it out on a wing. This will avoid common sources of magnetic deviation. Use the airspeed/magnetometer cable extension to make it easier to attach and remove the wing.


click to enlarge

Instead of velcro, we simply use EPP foam blocks to hold everything in place.

Note that a little shim has to be placed on the side wall of the attic to keep Ruby aligned with the plane axes. Use the middle seam of the fuselage as a reference.

The Expander SD Flash holder has steel which can become magnetized and interfere with the magnetometer, so be sure to put the airspeed sensor on the side of the controller with big "RUBY" lettering, and not on the Expander side.


click to enlarge



Wiring the power sensor and switching regulator

Overview

Ruby currently requires a power sensor to enable it to control motor power with precision and track remaining battery capacity. You can fly Ruby without it connected, but you'll lose altitude hold, autonomous landing, and battery gauge capabilities.

We also recommend using a "Switching BEC" to power Ruby. See input power requirements.

To conserve space when installing in smaller planes, it's recommended that these parts be soldered together rather than add the bulk of additional connectors.

Schematic






click to enlarge

Soldering step-by-step:

The wide copper traces through which power flows on the motor power sensor board are not sufficient to carry high current by themselves. They need a thick layer of solder on top of them to increase conductivity. Otherwise, at high power the traces can overheat and "blow" like a fuse.

Apply solder generously to cover the traces completely from the "BAT+" and "ESC+" pads all the way to each terminal of the power sense resistor. Generous solder on the power sense resistor terminals will reduce chances of it overheating and becoming inaccurate. It's ok if you get solder on top of the terminals.




click to enlarge

Also be sure to apply extra solder to cover the short copper trace between "BAT-" and "ESC-" on the flipside of the sensor.


click to enlarge

Strip just a little bit of insulation from the end of the positve ESC power input lead and solder to the pad marked "ESC+" on the Ruby power sensor module. Solder in a position such that the uninsulated portion of the wire doesn't extend close to the edge of the board where it could short with the "ESC-" wire that will be soldered to the opposite side.

Likewise, strip and solder the negative ESC power input lead to pad marked "ESC-" the opposite side of the Ruby power sensor.

Likewise, strip and solder the pieces of wire that were cut from the ESC to the pads marked "BAT+" and "BAT -".

If a battery connector was not already attached to those wires, solder one on. Even with a small plane like the Merlin, typical motor power is 2 - 4 amps with 8 amp peaks, so we prefer larger connectors such as Dean's "T" plugs.



Solder the positive power input wire of the switching BEC in with the positive power input wire of the ESC at the "ESC+" pad on the Ruby power sensor.

Solder the negative power input wire of the switching BEC in with negative power input wire of the ESC at the "ESC-" pad on the Ruby power sensor.



*** Be sure that no uninsulated portions of wires extend beyond the edge of the Ruby power sensor. In other words, be sure that there's no way that + and - leads could possibly short if the cables are twisted in any way.


click to enlarge

click to enlarge

click to enlarge

Here's what everything looks like when it's connected to Ruby,
(... except that the power sensor will be covered with electrical tape).

This picture is using a ParkBec, which combines power and throttle control into a single servo connector.

For other BECs, you'll have to plug the BEC power into an unused channel on Ruby separate from the throttle, or use a standard servo "Y" cable so the BEC can share a port with throttle or other servo. Be sure to disconnect the power wire coming in on the Throttle connector from the ESC so that the ESC's BEC and switching BEC are not trying to power the same electronics.


click to enlarge

Cover all exposed metal contacts.

Wrap the power sensor in electrical tape or heat shrink tubing. For easier packing, tape the power sensor to the ESC to form a single bundle. Don't wrap tape around the ESC to the extent that it becomes thermally insulated and more susceptible to overheating.

Keep switching BEC away from GPS and R/C receivers.

In our testing, we've found that the typical BEC needs to be at least 3 inches from GPS and R/C receiver.





Note: The latest version of the motor power sensor connects to the connector labeled "I2C1" on the Ruby Controller. (Don't confuse with "I2C2" on the Expander.). The port labeled "Motor Sense" on the Ruby Controller is no longer used.

There are two connector labeled "I2C" on the power sensor. Either one can be used. The extra connector allows other I2C devices such as the airspeed/magnetometer to be daisy-chained.





Connecting the Ruby controller



Servo connectors:

Connect: to Ruby:
Throttle
(and BEC if Parkbec)
"1 Throt"

BEC if not ParkBec

Flaps (connected to "Y" adapter cable)

"5 Gear"
Right Aileron (or both ailerons if connected to a "Y" adapter cable) "2 Ail R"
Left Aileron "6 Ail L"
Elevator "3 Elev"
Rudder "4 Rudder"



All servo connectors on the controller (but not the Expander) are connected to the same 5 volt / ground power bus.

If you don't have a Parkzone BEC that feeds power through the throttle servo connector, you can plug it into channel 5 "gear", which is otherwise unused.

Be sure to plug servos and BEC into Ruby with correct polarity. Plugging the BEC in with polarity reversed could destroy your Ruby! Black wires should match with "-" printed on Ruby cover for every channel.

Ribbon cable connectors:

The ribbon cables currently don't have any markings on them, but you can identify them simply by counting the number of wires.

Motor power sensor

New version: 5 wire ribbon cable, connects to "I2C1" on Ruby Controller (not "I2C2" on Expander. "Motor Sense" connector is unused).

Old version: 8 wire ribbon cable, connects to "Motor Sense" on Ruby controller.

GPS (4 wire ribbon cable - there are two such cables in your kit. Choose whichever is the most suitable length)

Airspeed (5 wire ribbon cable).

Receiver (7 to 9 wire cable, depending on adapter, with a partially populated 12 wire connector that plugs into Ruby)

The "USB Dongle" and cable is just intended for temporary use on the bench. You can omit it here.



Balance

Follow manufacturer's directions regarding balance of the plane.

In the case of the Skywalker, we've not seen published values, but we've found that roughly 1/4 of the way back from leading edge of wing is a good rule of thumb. You'll need plenty of weight up front for this proper balance. We use three 2200 mah 3S batteries in parallel pushed all the way forward in the nose.

Proper balance is critical for any aircraft, whether or not a system like Ruby is in place to offer artificial stabilization. Although Ruby's "fly by wire" capability may (or may not) be able to bring an unstable plane under control, it will still fly very poorly without radical changes of settings away from standard default values, and excessive servo activity. Most notably, if the plane is a little tail heavy, Ruby control of pitch and airspeed will be erratic with standard settings, and if it's too tail heavy, the plane will be completely uncontrollable with any settings.



Configuration

Now that Ruby is physically installed, you'll need to load configuration settings to match your airframe, receiver, and preferences.

Please proceed to configuration.
