ImmersionRC EZUhfTM Configuration


Objectives:

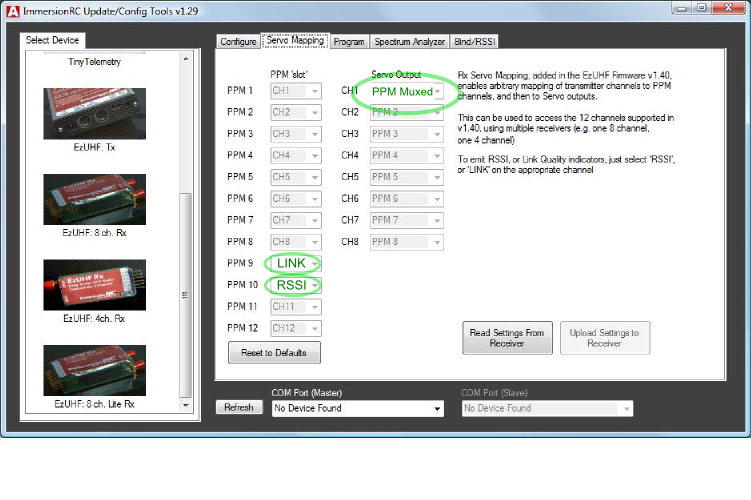

  • Have EZUhf output all channel information on a single servo out channel suitable for use with Ruby "PPM" adapter cable.
    ("PPM Muxed", also known as "CPPM", "SPPM", or simply "PPM")
  • Get EZUhf receiver to output 10 channels instead of default 8 channels, so RSSI can be output on a high numbered channel without masking a channel coming from your transmitter. In other words, we want to obtain RSSI info from EZUhf without losing any channels available from your transmitter.
  • Have EZUhf output RSSI information on channel / "slot" 9 of the PPM Muxed output.





.You will plug the Ruby "PPM" connector into Channel 1 on the EZUhf.

You can leave the Ruby "RSSI" connector dangling or plugged into any other channel. It will be ignored since EZUhf will actually be outputting RSSI info on a "PPM Muxed" channel / "slot".
